T10M000000S019,AEL艾尔有源温补3044永利集团,7050石英贴片3044永利集团

当前位置：首页 » 欧美进口3044永利集团 » AEL3044永利集团 » T10M000000S019,AEL艾尔有源温补3044永利集团,7050石英贴片3044永利集团

prevnext

T10M000000S019,AEL艾尔有源温补3044永利集团,7050石英贴片3044永利集团

频率：10.000000MHz

尺寸：7.0mm x 5.0mm

Original model 原厂编码	T10M000000S019
Manufacturer 品牌	AEL有源3044永利集团
Part Series 型号	T10M000000S019
Type 类型	TCXO
Frequency 频率	10.000000MHz
Output Type 输出方式	Clipped Sine wave
Supply Voltage 电压	5V
Frequency Stability 频率稳定性	±2.5ppm
Operating Temperature 工作温度	-40°C to +85°C
Package Size 包装尺寸	7050贴片3044永利集团

订购热线：13380314981

T10M000000S019,AEL艾尔有源温补3044永利集团,7050石英贴片3044永利集团详细参数

Original model 原厂编码	T10M000000S019
Manufacturer 品牌	AEL有源3044永利集团
Part Series 型号	T10M000000S019
Type 类型	TCXO差分3044永利集团
Frequency 频率	10.000000MHz
Output Type 输出方式	Clipped Sine wave
Supply Voltage 电压	5V
Frequency Stability 频率稳定性	±2.5ppm
Operating Temperature 工作温度	-40°C to +85°C

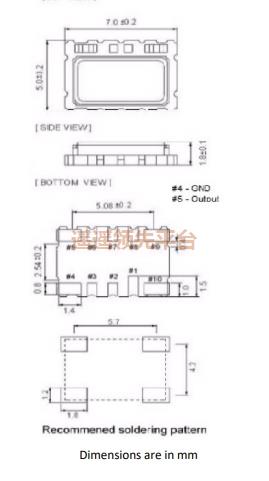

Package Size 包装尺寸	7.0mm x 5.0mm
Package Height 厚度	1.8mm
Termination 脚位	10-pad
Package Type 封装类型	10-SMD
Lead Free 无铅	Yes
Mounting Style 安装方式	Surface Mount
Packaging 包装	Tape and Reel
